UV Transformer
我公司的UV变压器产品是在吸收国外先进技术的基础上，结合国内实际情况进行研发生产的，在温升、噪音的控制上已经达到国内先进水平。产品采用进口硅钢片、高温漆包铜线和优质绝缘纸，并经过真空浸漆工艺，更有效提高产品质量和使用寿命。
Our UV transformer is developed and produced on the foundation of fully digesting and absorbing foreign advanced technology as well as considering domestic practical condition. Its control on temperature rising and noise has reached the leading level in China. By using imported silicon steel, high-temperature enamelled copper wire and high quality insulating paper, our product is processed through vacuum lacquer technology which effectively improves the quality and lifetime of product.
说明：1.UV变压器采用漏磁升压原理，在特殊场合使用的干式变压器。
2.灯管、变压器、电容是完整匹配系统。变压器的选择与UV灯的功率相匹配，即变压器必须有足够的输出电压，以保证UV灯能全功率工作。如输出电压过高会使灯管烧毁；而输出电压过低，灯管又不能全功率工作，从而使紫外线输出强度不足。
Description: 1. UV transformer is a kind of dry type transformer used in special occasion which adopts magnetic leakage and boosting principles.
2. Tube, transformer and capacitor constitute a complete matching system. The selection of transformer shall be done based on the power of UV lamp, i.e., the transformer shall have enough output voltage to ensure the full power operation of UV lamp. If the output voltage is too high, the lamp will be burn down; if the output voltage is too low, the lamp will not operate in full power which results in the inadequate output strength of ultraviolet ray.
特点：
1.UV变压器性能稳定、可靠，高效低耗，是UV固化配套的理想电源。
2.可以制作功率3KW-25KW供客户选择使用，该产品性能稳定，启动快，噪音小，热量低，功耗节能等特点。
3.可同进口设备UV光源配套使用，款式有立式、卧式和仿进口式。
Features:
1. UV transformer has the advantages of stable and reliable performance, high efficiency and low consumption. It is the ideal supply of UV curing system.
2. Its power ranges from 3KW to 25KW which can be freely choosed by clients. It has the features of stable performance, quick start-up, low noise, low heat and energy conservation, etc.
3. it is compatible with the imported equipment UV lamp, with vertical, horizontal type and imitating imported type.
主要技术参数

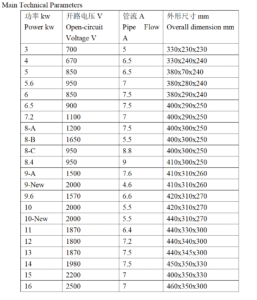

Main Technical Parameters
